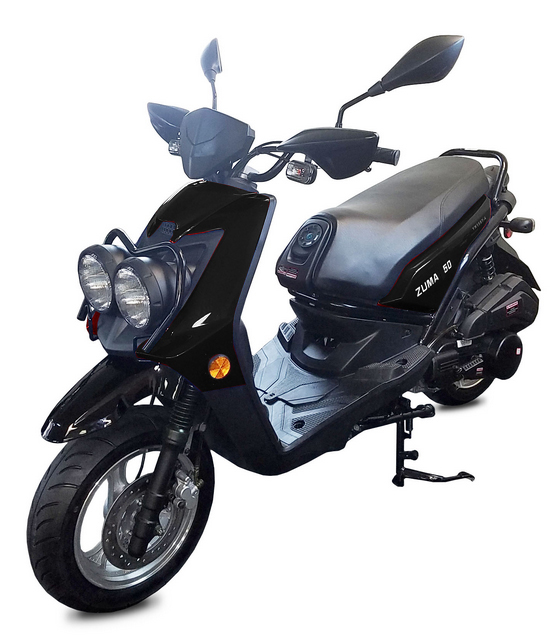

Zoma 49CC

Description

ZOMA 49cc SPECIFICATIONS



ENGINE INFO

Engine type                  CVT

Engine brand                157QMJ

Displacement                49.9cc

Cooling                         Air cooled

Max horsepower            2.2hp/2500rpm

Max torque                   2.7n.m/1700rpm

Bore*stroke                  2.26*2.28inches

Max speed                    Up to 25mph (may vary with rider weight, road condition and/or other factors)

Climbing ability             30degree

Ignition                        CDI

Starting system            Electric/Kick

Battery                        12v/7AH

Carburetor brand          PD24J

Engine oil                     SAE15W/40SF

Gear oil                            *



CHASSIS ETC.

Clutch                        Automatic

Transmission                  *

Drive line                        *

Driving wheel            Rear wheel drive

Suspension, front/rear    *

Brakes, front/rear       Disc/drum

Brake operation          Hand + foot

Tires, front/rear          120/70-12

Fuel capacity/type       1.5gal

Weight, G.W./N.W.     298LBS/243LBS

Max load                    220.5lbs



DIMENSIONS

Wheelbase                43.63inches 1330MM

OA L*W*H                63.32*23.29*36.74inches 1930X710X1120

Height to seat           32.2inches

Min ground clearance 5.9inches 150MM
