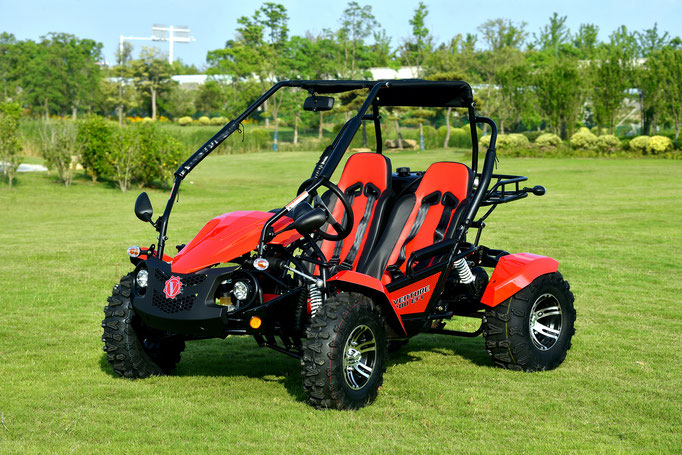

| 200CC (EFI) GOKART |
| Vehicle |
|
| Overall Length |
89.8 in. (2281mm) |
| Overall Width |
62.5 in. (1588mm) |
| Overall Height |
57.5 in.（1460mm） |
| Front Tire |
19×7-8 |
| Rear Tire |
22×10-10 |
| Wheelbase |
60.6 in.(1540mm) |
| Min. ground clearance |
2.8 inch (71.1mm) |
| Dry Weigh |
529lbs (240kg) |
| Front Suspension |
Independent Mcpherson |
| Rear Suspension, |
Drag arm suspension |
| Front Brake |
Ventilated Hydraulic DIsc |
| Rear Brake |
Ventilated Hydraulic DIsc |
| Fuel Tank Capacity |
2.3gal (8.5L) |
| Battery |
12V 9Ah |
| Maximum Speed |
38mile (60km/h) |
| Engine |
|
| Engine Type |
Four-Sroke, Single Cylinder |
| Displacement |
168.9 cc |
| Bore & Stroke |
61 × 57.8 mm |
| Compression Ratio |
9.2：1 |
| Fuel System |
Electronic Fuel Injection (EFI) |
| Ignition |
Electronic Control Unit (ECU) |
| Transmission |
Automatic F-N-R |
| Drive Train |
CVT belt, Chain drive |
| Cooling |
Air cooling |
| Maximum power (Kw /r/min) |
8.3KW/8000RPM |
| Maximum Torque (Nm /r/min) |
11N·m/6000RPM |
