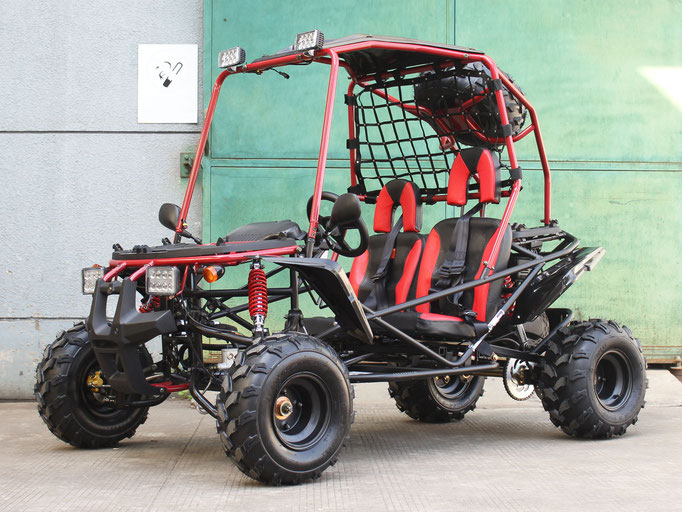

PATHFINDER 200 GSX (DF200GSX)

Description

Specification
1) Engine type: single cylinder tilt 25°, OHV, 4-storke,
2) Displacement(ml): 196

3) Rated. Power(kw/r/min): 3.8kw/3600r/min
4) Max Torque (N. m/r/min):11.5N·m/2500r/min

5) Ignition system: TCI – Electric and Pull Start

6) Gear: F+N+R

7) Fuel tank capacity(L): 3.6

8) Economical oil exhaust(L/100km): 3.5

9) Max speed(km/h):

10) Transmission: chain
11) Brake Type: Disc Drive
12) Wheelbase(mm): 1570

13) Seat Height (mm): 450

14) Top height(mm): 1500
15) Ground clearance(mm): 120
16) Tires (front / rear): 19*7.00-8 / 18*9.5-8
17) N. W.(kg): 186(+6kg) G. W.(kg): 222(+6kg)

18) Product dimension(mm): 2060*1310*1510

19) Carton dimension(mm): 1800*1140*625
