| ENGINE |

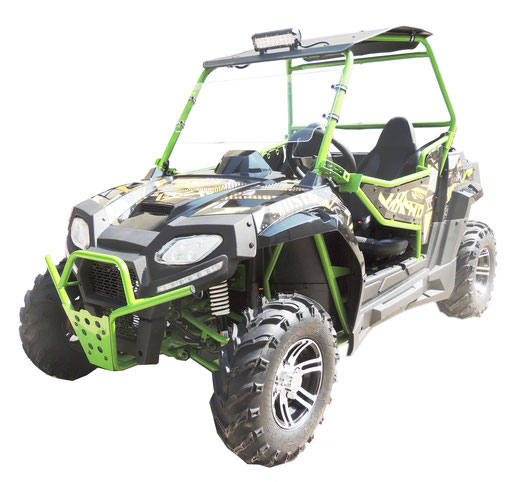

FX250 |
| Certification |
|
| Engine type |
4-stroke,Single-Cylinder, Air/Oil-cooled |
| Displacement |
232cc |
| Horse Power |
10.5kw(7500r/min) 14.5HP |
| Valve Configuration |
OHV |
| Compression ratio |
10.3:1 |
| FUEL SYSTEM |
| Fuel Delivery System |
Fuel Pump Carburetor |
| Choke System |
Automatic |
| Fuel capacity |
9.5L (2.1 Gallon) |
| DRIVETRAIN |
| Driveline Type |
2X4 |
| Final Drive |
Chain-drive |
| Transmission |
Constantly Variable Transmission |
| Gear Selection |
Forward & Reverse Single Speed |
| ELECTRICAL SYSTEM |
| Forward Lights |
Headlights-High & Low Beam LED LIGHT |
| Rear Lights |
Brake Lights & Left/Right Signal lights |
| Starting system |
Electric start |
| Ignition system |
C.D.I |
| SUSPENSION / BRAKES |
| Suspension Front |
Adjustable Double A-arm optional |
| Suspension Rear |
Dual Shock Swing arm |
| Brakes Front |
Front Dual Hydraulic Disk |
| Brakes Rear |
Rear Single Axle Hydraulic Disk |
| Steering |
Rock and pinion steering |
| TIRES |
| Front Tread |
1020mm ( 40.2 in) |
| Rear Tread |
1040mm ( 38.0in) |
| Front & Rear tire size |
22×8-10 / 22×10-10 |
| MISC |
|
|
| Top speed |
55km/h |
| Dry weight |
245kg ( 540 lbs.) |
| Gross weight |
280kgs(617lbs) |
| Wheelbase |
1860mm (71.0in) |
| Vehicle dimension (L×W×H) |
2450x1220x1760mm (96.4x48x69.2in) |
| Packing size |
2290x1300x815mm (90.1×51.1x32in) |
| Ground clearance |
152mm (6in) |
| Safety |
Driver & Passenger Seat belts/ Driver and Passenger safety net restraints. |
